Monorail Hoists

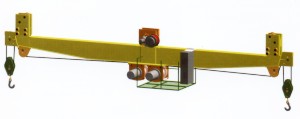

Monorail Hoist

Destination

Monorail hoists are made as deck, travelling on one beam, hanging units with two hooks and nominal load capacities of 4 or 5 tons on every hook. They are destined for assembling on superstructure wall of see going vessel with unlimited range of operation.
Monorail hoist is destined for cargo handling and proviant service using one of two hooks, depending of cargo operations on shipside.

Structure

The hoist consist of:

Certificates

Cranes are produced, due to customer requirements, with various Classification Society Certificates in between: GL, DNV, LRS, ABS, BV, PRS, MRS.

Technical parameters

Nominal load 4/4t (2/2t)* 5/5t (2,5/2,5t)*
Power supply 3x380 V; 50 Hz 3x440 V; 60 Hz 3x380 V; 50 Hz 3x440 V; 60 Hz
Control current 24 V; 50 H 24 V; 60 H 24 V; 50 H 24 V; 60 H
Travel speed 7,6 m/min 9,5 m/min 7,6 m/min 9,5 m/min
Nominal hoist speed 4/8 m/min
(8/16 m/min)*		 5/10 m/min
(10/20 m/min)*		 4/8 m/min
(8/16 m/min)*		 5/10 m/min
(10/20 m/min)*
Kind of running intermittent S2 intermittent S2
Motor enclosure IP 56 IP 56
Scope of wacking temperature - 25 to +45 °C - 25 to +45 °C
Electric motor for lifting gear mech. 7,2/12 kW 7,2/12 kW
Motor speed 720/1440 per min 870/1750 per min 720/1440 per min 870/1750 per min
Electric motor for trawersing gear 1,5kW 1,8kW 1,5kW 1,8 kW
Motor speed 1420 per min 1710 per min 1420 per min 1710 per min
Max outreach outside ship side 3,5m 3,5m

* - operation with a hook assembled directly to the rope - without pulley block
