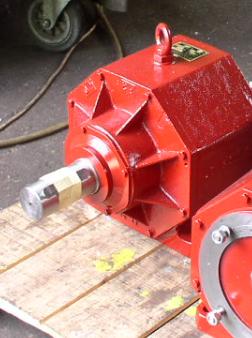

Motoreducers
Application
Motoreducers are designed for driving machinery and equipment.
They are adapted for operation under marine climate conditions. They can be installed
in closed compartments and on weather decks.
Motoredusers are provided for horizontal operation but their construction enables
operation at the heel up to 30° in any direction.
Construction
Motoreducers constitute a set of gear and three-phase asynchronous motor.
In typical versions, splash-proof motors are used.
Motoreducers are supplied with 3x380 V, 50 Hz. Motoreducer constructions are dust-
and water-proof. They can be mounted on lugs or by means of flanges.
Designations
literal designations
RP - planetary motoreducer on lugs
RPK - planetary flange-type motoreducer
MR - cylindrical motoreducer on lugs
MRK - cylindrical flange-type motoreducer
digital designations
first digit ( 1, 2, 3, 4 only for RP and RPK ) designates identification number
of a given series of type;
second digit ( 5, 6.3, 8, 10, 12, 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200,
250, 315, 400, 500, 630, 800, 1000 ) - designates gear ratio value;
third number of digital designation (112 M-4, 100L-4A, 100L-4B, 90L-4, 90S-4, 80-4B,
80-4A ) designates size of electric motor.
example of designation
Planetary motoreducer on lugs
RP from the series of type
1, with gear ratio
50
with electric motor msskf
100L-4B
RP 1.50.100L-4B
Technical Characteristic
RP; RPK 1 Motoreducers
|
Motoreducer type |
Power [kW] |
Rotation speed
[rpm]
|
Turning moment [Nm]
|
Max. force F [N]
|
Total lenght L [mm] |
Mass [kg] |
|
RP 1.25.112M-4 |
RPK 1.25.112M-4 |
3.4 |
56.5 |
570 |
6000 |
700 |
106 |
|
RP 1.25.100L-4B |
RPK 1.25.100L-4B |
2.5 |
55.5 |
440 |
675 |
98 |
|
RP 1.25.100L-4A |
RPK 1.25.100L-4A |
1.8 |
56.0 |
310 |
675 |
93 |
|
RP 1.25.90L-4 |
RPK 1.25.90L-4 |
1.3 |
55.5 |
235 |
630 |
86 |
|
RP 1.25.90S-4 |
RPK 1.25.90S-4 |
0.9 |
55.0 |
165 |
605 |
84 |
|
RP 1.31,5.100L-4B |
RPK 1.31,5.100L-4B |
2.5 |
46.5 |
540 |
675 |
98 |
|
RP 1.31,5.100L-4A |
RPK 1.31,5.100L-4A |
1.8 |
46.5 |
380 |
675 |
93 |
|
RP 1.31,5.90L-4 |
RPK 1.31,5.90L-4 |
1.3 |
46.5 |
290 |
630 |
86 |
|
RP 1.31,5.90S-4 |
RPK 1.31,5.90S-4 |
0.9 |
46.5 |
200 |
605 |
84 |
|
RP 1.40.100L-4A |
RPK 1.40.100L-4A |
1.7 |
34.0 |
500 |
675 |
93 |
|
RP 1.40.90L-4 |
RPK 1.40.90L-4 |
1.3 |
33.5 |
380 |
630 |
86 |
|
RP 1.40.90S-4 |
RPK 1.40.90S-4 |
0.9 |
33.5 |
270 |
605 |
84 |
|
RP 1.50.100L-4A |
RPK 1.50.100L-4A |
1.7 |
29.0 |
570 |
675 |
93 |
|
RP 1.50.90L-4 |
RPK 1.50.90L-4 |
1.3 |
29.0 |
430 |
630 |
86 |
|
RP 1.50.90S-4 |
RPK 1.50.90S-4 |
0.9 |
29.0 |
300 |
605 |
84 |
|
RP 1.63.90L-4 |
RPK 1.63.90L-4 |
1.3 |
23.5 |
530 |
630 |
86 |
|
RP 1.63.90S-4 |
RPK 1.63.90S-4 |
0.9 |
23.5 |
370 |
605 |
84 |
|
RP 1.80.90S-4 |
RPK 1.80.90S-4 |
0.8 |
17.0 |
480 |
605 |
84 |
|
RP 1.80.80-4B |
RPK 1.80.80-4B |
0.6 |
17.0 |
340 |
585 |
80 |
|
RP 1.80.80-4A |
RPK 1.80.80-4A |
0.4 |
17.0 |
250 |
565 |
78 |
|
RP 1.100.90S-4 |
RPK 1.100.90S-4 |
0.8 |
14.0 |
480 |
605 |
84 |
|
RP 1.100.80-4B |
RPK 1.100.80-4B |
0.6 |
14.0 |
420 |
585 |
80 |
|
RP 1.100.80-4A |
RPK 1.100.80-4A |
0.4 |
14.0 |
310 |
565 |
78 |
|
RP 1.125.80-4B |
RPK 1.125.80-4B |
0.6 |
11.0 |
510 |
585 |
80 |
|
RP 1.125.80-4A |
RPK 1.125.80-4A |
0.4 |
11.0 |
380 |
565 |
78 |
Back to top
RP; RPK 2 Motoreducers
|
Motoreducer type |
Power [kW] |
Spinning speed
[spins/min]
|
Usefull moment [Nm]
|
Max. force F [N]
|
Total lenght L [mm] |
Mass [kg] |
|
RP 2.200.90L-4 |
RPK 2.200.90L-4 |
1.1 |
7.2 |
1550 |
40000 |
860 |
156 |
|
RP 2.200.90S-4 |
RPK 2.200.90S-4 |
0.8 |
7.1 |
1080 |
835 |
154 |
|
RP 2.200.80-4B |
RPK 2.200.80-4B |
0.6 |
7.0 |
785 |
810 |
150 |
|
RP 2.200.80-4A |
RPK 2.200.80-4A |
0.4 |
7.0 |
575 |
790 |
148 |
|
RP 2.250.90L-4 |
RPK 2.250.90L-4 |
1.1 |
5.7 |
1940 |
860 |
156 |
|
RP 2.250.90S-4 |
RPK 2.250.90S-4 |
0.8 |
5.7 |
1360 |
835 |
154 |
|
RP 2.250.80-4B |
RPK 2.250.80-4B |
0.6 |
5.6 |
980 |
810 |
150 |
|
RP 2.250.80-4A |
RPK 2.250.80-4A |
0.4 |
4.5 |
910 |
790 |
148 |
|
RP 2.315.90S-4 |
RPK 2.315.90S-4 |
0.8 |
4.5 |
1730 |
835 |
154 |
|
RP 2.315.80-4B |
RPK 2.315.80-4B |
0.6 |
4.5 |
1250 |
810 |
150 |
|
RP 2.315.80-4A |
RPK 2.315.80-4A |
0.4 |
4.5 |
910 |
790 |
148 |
|
RP 2.400.90S-4 |
RPK 2.400.90S-4 |
0.8 |
3.5 |
2180 |
835 |
154 |
|
RP 2.400.80-4B |
RPK 2.400.80-4B |
0.6 |
3.5 |
1570 |
810 |
150 |
|
RP 2.400.80-4A |
RPK 2.400.80-4A |
0.4 |
3.5 |
1150 |
790 |
148 |
|
RP 2.500.80-4B |
RPK 2.500.80-4B |
0.5 |
2.8 |
1800 |
810 |
150 |
|
RP 2.500.80-4A |
RPK 2.500.80-4A |
0.35 |
2.8 |
1320 |
790 |
148 |
|
RP 2.630.80-4A |
RPK 2.630.80-4A |
0.35 |
2.2 |
1680 |
790 |
148 |
Back to top
RP; RPK 3 Motoreducers
|
Motoreducer type |
Power [kW] |
Spinning speed
[spins/min]
|
Usefull moment [Nm]
|
Max. force F [N]
|
Total lenght L [mm] |
Mass [kg] |
|
RP 3.31,5.112M-4 |
RPK 3.31,5.112M-4 |
3.3 |
47.0 |
680 |
10000 |
765 |
127 |
|
RP 3.40.112M-4 |
RPK 3.40.112M-4 |
3.2 |
35.0 |
880 |
765 |
127 |
|
RP 3.50.112M-4 |
RPK 3.50.112M-4 |
3.2 |
28.0 |
1100 |
765 |
127 |
|
RP 3.63.112M-4 |
RPK 3.63.112M-4 |
3.1 |
23.5 |
1280 |
765 |
127 |
|
RP 3.63.100L-4B |
RPK 3.63.100L-4B |
2.4 |
23.5 |
980 |
745 |
119 |
|
RP 3.80.112M-4 |
RPK 3.80.112M-4 |
3.0 |
19.0 |
1520 |
765 |
127 |
|
RP 3.80.100L-4B |
RPK 3.80.100L-4B |
2.3 |
19.0 |
1160 |
745 |
119 |
|
RP 3.80.100L-4A |
RPK 3.80.100L-4A |
1.6 |
19.0 |
825 |
745 |
114 |
|
RP 3.100.112M-4 |
RPK 3.100.112M-4 |
2.8 |
14.0 |
1950 |
765 |
127 |
|
RP 3.100.100L-4B |
RPK 3.100.100L-4B |
2.1 |
14.0 |
1500 |
745 |
119 |
|
RP 3.100.100L-4A |
RPK 3.100.100L-4A |
1.5 |
14.0 |
1060 |
745 |
114 |
|
RP 3.100.90L-4 |
RPK 3.100.90L-4 |
1.1 |
14.0 |
800 |
700 |
107 |
|
RP 3.125.100L-4B |
RPK 3.125.100L-4B |
2.1 |
11.2 |
1850 |
745 |
119 |
|
RP 3.125.100L-4A |
RPK 3.125.100L-4A |
1.5 |
11.2 |
1320 |
745 |
114 |
|
RP 3.125.90L-4 |
RPK 3.125.90L-4 |
1.1 |
11.2 |
990 |
700 |
107 |
|
RP 3.160.100L-4A |
RPK 3.160.100L-4A |
1.4 |
9.2 |
1470 |
745 |
114 |
|
RP 3.160.90L-4 |
RPK 3.160.90L-4 |
1.0 |
9.2 |
1110 |
700 |
107 |
|
RP 3.160.90S-4 |
RPK 3.160.90S-4 |
0.7 |
9.1 |
780 |
675 |
105 |
Back to top
RP; RPK 4 Motoreducers
|
Motoreducer type |
Power [kW] |
Spinning speed
[spins/min]
|
Usefull moment [Nm]
|
Max. force F [N]
|
Total lenght L [mm] |
Mass [kg] |
|
RP 4.200.112M-4 |
RPK 4.200.112M-4 |
2.9 |
7.2 |
3900 |
65000 |
1015 |
266 |
|
RP 4.200.100L-4B |
RPK 4.200.100L-4B |
2.2 |
7.1 |
3020 |
990 |
258 |
|
RP 4.200.100L-4A |
RPK 4.200.100L-4A |
1.6 |
7.1 |
2150 |
990 |
253 |
|
RP 4.250.100L-4B |
RPK 4.250.100L-4B |
2.2 |
5.7 |
3730 |
990 |
258 |
|
RP 4.250.100L-4A |
RPK 4.250.100L-4A |
1.6 |
5.7 |
2660 |
990 |
253 |
|
RP 4.315.100L-4A |
RPK 4.315.100L-4A |
1.6 |
4.6 |
3300 |
990 |
253 |
|
RP 4.400.100L-4A |
RPK 4.400.100L-4A |
1.4 |
3.6 |
3910 |
990 |
253 |
|
RP 4.400.90L-4 |
RPK 4.400.90L-4 |
1.1 |
3.6 |
2960 |
950 |
246 |
|
RP 4.500.90L-4 |
RPK 4.500.90L-4 |
1.1 |
2.9 |
3640 |
950 |
246 |
|
RP 4.630.90S-4 |
RPK 4.630.90S-4 |
0.75 |
2.3 |
3200 |
925 |
244 |
|
RP 4.800.80-4B |
RPK 4.800.80-4B |
0.5 |
1.7 |
3020 |
900 |
240 |
|
RP 4.800.80-4A |
RPK 4.800.80-4A |
0.4 |
1.7 |
2230 |
880 |
238 |
|
RP 4.1000.80-4B |
RPK 4.1000.80-4B |
0.5 |
1.4 |
3640 |
900 |
240 |
|
RP 4.1000.80-4A |
RPK 4.1000.80-4A |
0.4 |
1.4 |
2670 |
880 |
238 |
Back to top
MR; MRK Motoreducers
|
Motoreducer type |
Power [kW] |
Spinning speed
[spins/min]
|
Usefull moment [Nm]
|
Max. force F [N]
|
Total lenght L [mm] |
Mass [kg] |
|
MR 5.112M-4 |
MRK 5.112M-4 |
3.5 |
282 |
120 |
3000 |
630 |
67 |
|
MR 5.100L-4B |
MRK 5.100L-4B |
2.7 |
280 |
93 |
610 |
59 |
|
MR 5.100L-4A |
MRK 5.100L-4A |
1.9 |
281 |
66 |
610 |
54 |
|
MR 5.90L-4 |
MRK 5.90L-4 |
1.4 |
279 |
50 |
565 |
47 |
|
MR 5.90S-4 |
MRK 5.90S-4 |
1.0 |
277 |
35 |
540 |
45 |
|
MR 5.80-4B |
MRK 5.80-4B |
0.7 |
275 |
25 |
515 |
41 |
|
MR 5.80-4A |
MRK 5.80-4A |
0.5 |
275 |
18 |
495 |
39 |
|
MR 6,3.112M-4 |
MRK 6,3.112M-4 |
3.5 |
226 |
150 |
630 |
67 |
|
MR 6,3.100L-4B |
MRK 6,3.100L-4B |
2.7 |
222 |
115 |
610 |
59 |
|
MR 6,3.100L-4A |
MRK 6,3.100L-4A |
1.9 |
224 |
82 |
610 |
54 |
|
MR 6,3.90L-4 |
MRK 6,3.90L-4 |
1.4 |
222 |
62 |
565 |
47 |
|
MR 6,3.90S-4 |
MRK 6,3.90S-4 |
1.0 |
221 |
43 |
540 |
45 |
|
MR 6,3.80-4B |
MRK 6,3.80-4B |
0.7 |
219 |
30 |
515 |
41 |
|
MR 6,3.80-4A |
MRK 6,3.80-4A |
0.5 |
219 |
22 |
495 |
39 |
|
MR 8.112M-4 |
MRK 8.112M-4 |
3.5 |
177 |
190 |
630 |
67 |
|
MR 8.100L-4B |
MRK 8.100L-4B |
2.7 |
174 |
146 |
610 |
59 |
|
MR 8.100L-4A |
MRK 8.100L-4A |
1.9 |
176 |
103 |
610 |
54 |
|
MR 8.90L-4 |
MRK 8.90L-4 |
1.4 |
174 |
78 |
565 |
47 |
|
MR 8.90S-4 |
MRK 8.90S-4 |
1.0 |
173 |
55 |
540 |
41 |
|
MR 8.80-4B |
MRK 8.80-4B |
0.7 |
172 |
39 |
515 |
41 |
|
MR 8.80-4A |
MRK 8.80-4A |
0.5 |
172 |
29 |
495 |
39 |
|
MR 10.100L-4A |
MRK 10.100L-4A |
1.9 |
143 |
128 |
610 |
54 |
|
MR 10.90L-4 |
MRK 10.90L-4 |
1.4 |
142 |
97 |
565 |
47 |
|
MR 10.90S-4 |
MRK 10.90S-4 |
1.0 |
141 |
68 |
540 |
45 |
|
MR 10.80-4B |
MRK 10.80-4B |
0.7 |
140 |
39 |
515 |
41 |
|
MR 10.80-4A |
MRK 10.80-4A |
0.5 |
140 |
36 |
495 |
39 |
|
MR 12.100L-4A |
MRK 12.100L-4A |
1.0 |
115 |
158 |
610 |
54 |
|
MR 12.90L-4 |
MRK 12.90L-4 |
1.4 |
114 |
120 |
565 |
47 |
|
MR 12.90S-4 |
MRK 12.90S-4 |
1.0 |
114 |
84 |
540 |
45 |
|
MR 12.80-4B |
MRK 12.80-4B |
0.7 |
113 |
60 |
515 |
41 |
|
MR 12.80-4A |
MRK 12.80-4A |
0.5 |
113 |
45 |
495 |
39 |
Back to top
